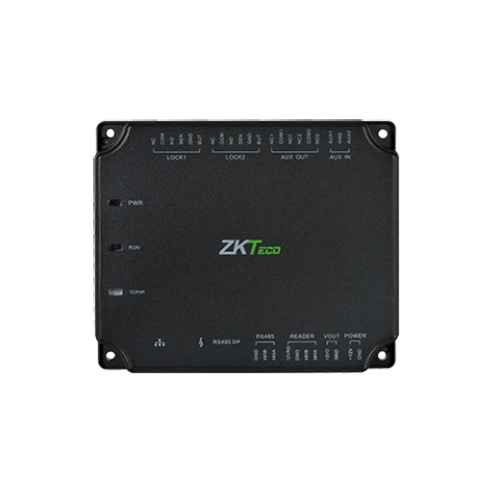

| Model |
C2-260 |
| Number of Doors Supported by Default |
2 |
| Number of Auxiliary Inputs |
2 |
| Number of Auxiliary Outputs |
2 |
| RS485 Extension Port |
1 |
| RS485 Reader Port |
1 |
| Number of Readers Supported |
4 |
| Types of Readers Supported |
RS485 card reader, Wiegand reader (WR485) |
| DM10 (Single-Door Extension Board) (Optional) |
Max. 8 |
| AUX485 (RS485-4 Aux. IN Converter) (Optional) |
2 |
| WR485 (RS485-Weigand Converter) (Optional) |
4 |
| Card Capacity |
30,000 |
| Log Capacity |
200,000 |
| Communication |
TCP/IP, RS485 |
| CPU |
32-bit 1.0GHz |
| RAM |
64MB |
| Power |
9.6V – 14.4V DC |
| Dimensions (L*W*H) |
116.47*96.49*31.40 mm |
| Operating Temperature |
-10°C to 50°C / 14°F to 122°F |
| Operating Humidity |
20% to 80% |
